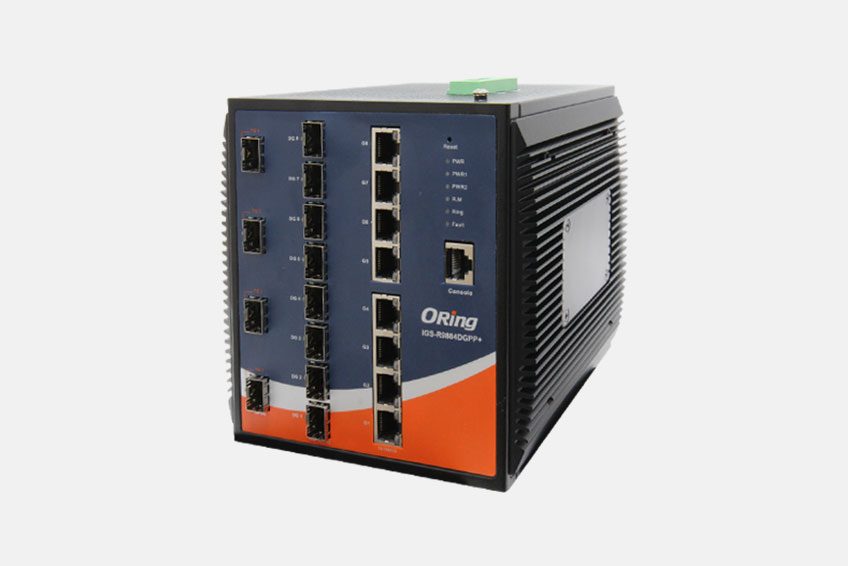

IGS-R9884DGPP+

Industrial Layer-3 20-port managed Gigabit Ethernet switch with 8×10/100/1000Base-T(X), 8×100/1G/2.5GBase-X, SFP socket, and 4x1G/10GBase-X, SFP+ socket

Features

• Support static routing and route redistribution for IPv4
• Support IPv4 routing protocols – RIP v2
• Supports O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) for Ethernet Redundancy
• O-Chain allow multiple redundant network rings
• Support standard IEC 62439-2 MRP*NOTE (Media Redundancy Protocol) function
• Supports IPv6 new internet protocol version
• Supports Modbus TCP protocol
• Provided HTTPS/SSH protocol to enhance network security
• Supports SMTP client and NTP server protocol
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Supports Device Binding security function
• Supports DOS/DDOS auto prevention
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
• Supports port mirror function to monitor port data
• Support ACL and 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Multiple notification for warning of unexpected event
• Web-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
• Support LLDP Protocol
• Support DBU-01 backup unit device to quickly backup/restore configuration
• Rigid IP-30 housing design, DIN-Rail and wall mounting enabled
