Listing Type :
Industrial Communication 4.0 / Oring Industrial Ethernet Switch / Lite-Managed Ethernet Switch

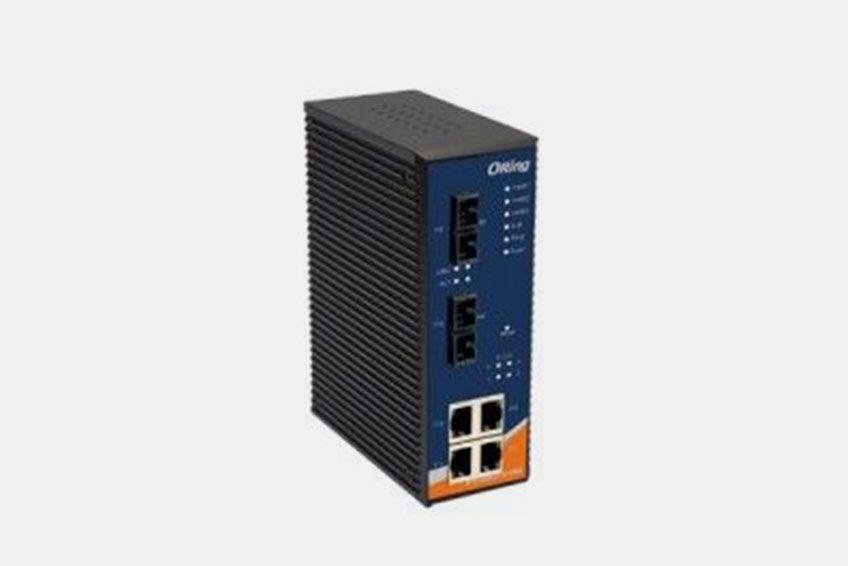

4FE PoE + 2 SC Multi-mode Lite-Managed Ethernet Switch, IEEE 802.3af
Features
- 4x 10/100Base-T(X) P.S.E. and 2x 100Base-FX multi mode fiber ports
- Fastest Redundant Ethernet Ring: O-Ring (Recovery time < 10ms over 250 units of connection)
- Open-Ring supports the other vendor’s ring technology in open architecture
- O-Chain support the multiple redundant ring technology
- Provides Fast recovery technology for Ethernet multi-redundancy
- STP/RSTP supported
- SNMP v1/v2c/v3 support for secured network management
- Supports LLDP (Link Layer Discovery Protocol)
- Configurable by Web-based and Windows utility (Open-Vision)
- Event notification through Syslog, Email, and SNMP trap
- Two 100Base-FX fiber port support for long distance connection
- Four P.S.E. ports based on IEEE 802.3af standard – up to 25 Watts per port
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
4FE PoE + 2 SC Multi-mode Lite-Managed Ethernet Switch, IEEE 802.3af
Features
- 4x 10/100Base-T(X) P.S.E. and 2x 100Base-FX multi mode fiber ports
- Fastest Redundant Ethernet Ring: O-Ring (Recovery time < 10ms over 250 units of connection)
- Open-Ring supports the other vendor’s ring technology in open architecture
- O-Chain support the multiple redundant ring technology
- Provides Fast recovery technology for Ethernet multi-redundancy
- STP/RSTP supported
- SNMP v1/v2c/v3 support for secured network management
- Supports LLDP (Link Layer Discovery Protocol)
- Configurable by Web-based and Windows utility (Open-Vision)
- Event notification through Syslog, Email, and SNMP trap
- Two 100Base-FX fiber port support for long distance connection
- Four P.S.E. ports based on IEEE 802.3af standard – up to 25 Watts per port
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
