Listing Type :
Industrial Communication 4.0 / Oring Industrial Ethernet Switch / L2/L3 Managed Ethernet Switch

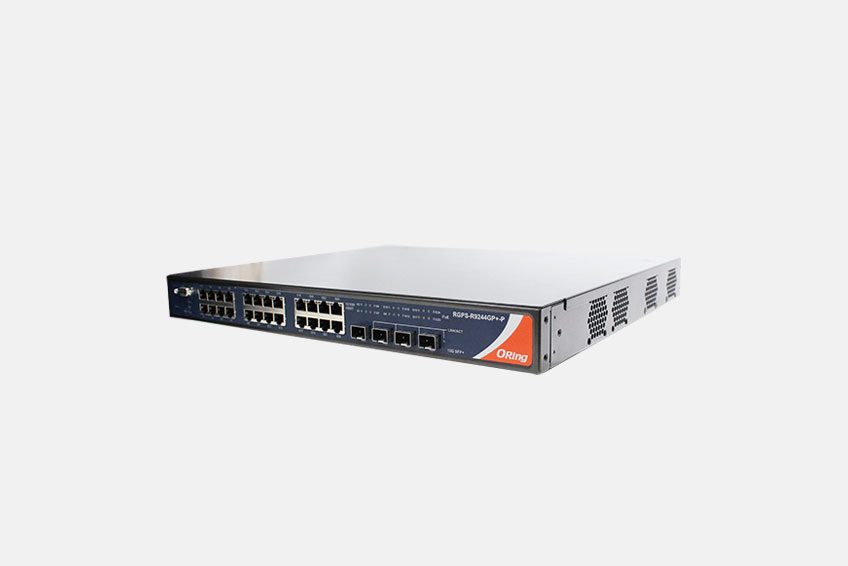

24GE PoE + 4 1G/10G SFP Cyber-hardened Managed L3 Ethernet Switch, IEEE 802.3af/at, Power Supply included
Features
- Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
- Support Layer 3 routing, RIP and static routing
- Support STP/RSTP/MSTP, O-Ring/O-Chain, MRP and G.8032
- 24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30W per port
- Support PoE scheduled configuration and PoE auto-ping check function
- Hardware IEEE 1588v2 clock synchronization
- Support Modbus TCP and Ethernet/IP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Provided HTTPS/SSH protocol to enhance network security
- Support SMTP client
- Support IP-based bandwidth management
- Support application-based QoS management
24GE PoE + 4 1G/10G SFP Cyber-hardened Managed L3 Ethernet Switch, IEEE 802.3af/at, Power Supply included
Features
- Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
- Support Layer 3 routing, RIP and static routing
- Support STP/RSTP/MSTP, O-Ring/O-Chain, MRP and G.8032
- 24 port P.S.E. fully compliant with IEEE802.3at standard, provide up to 30W per port
- Support PoE scheduled configuration and PoE auto-ping check function
- Hardware IEEE 1588v2 clock synchronization
- Support Modbus TCP and Ethernet/IP protocol
- Support IEEE 802.3az Energy-Efficient Ethernet technology
- Provided HTTPS/SSH protocol to enhance network security
- Support SMTP client
- Support IP-based bandwidth management
- Support application-based QoS management
