10.4″ Industrial Embedded Touch Panel PC

PCAP or resistive touch available, designed for embedded integration and seamless user interaction in industrial settings.



Description Product Name 10.4″ Fanless Embedded Touch Panel PC
Display Model Number NETPC310/NETPC410 (NETPC310 Series for Resistive touch;
NETPC410 for Capacitive touch)
Screen size(inch) TFT-LCD 10.4″ 4:3 (H:V)
Physical resolution 1024×768
Luminance (cd/m2) 450
Viewing Angle (H-V) 85/85/85/85
Contrast Ratio 1000:1
Backlight Lifetime (hrs) LED / 30,000

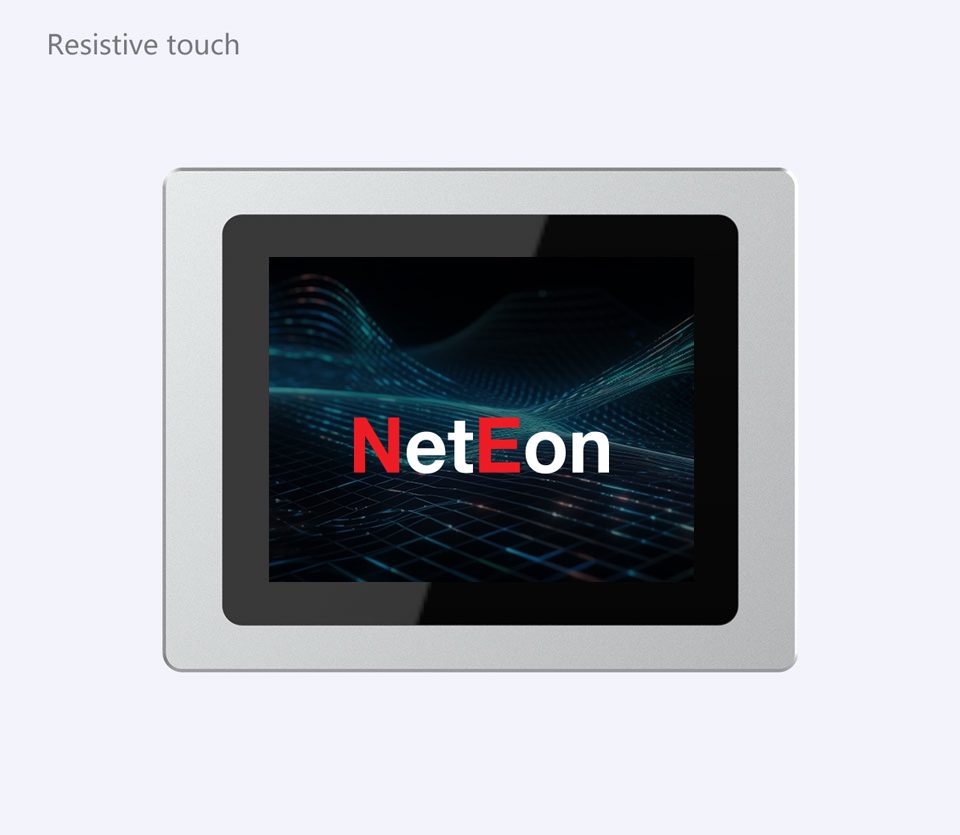

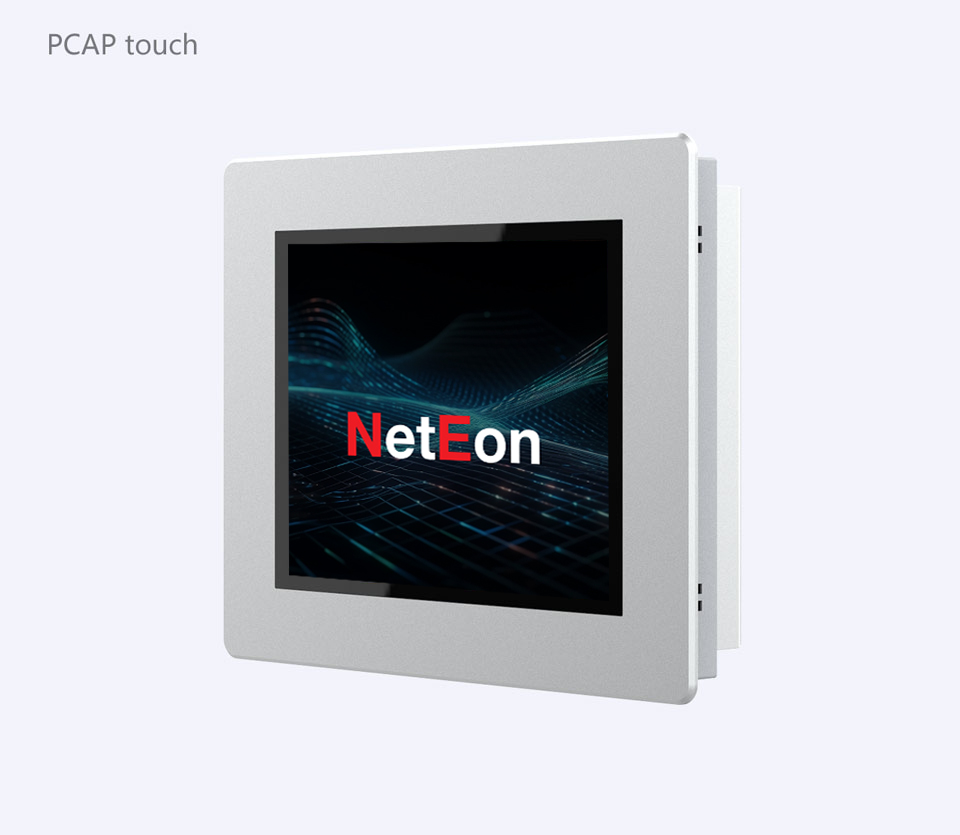

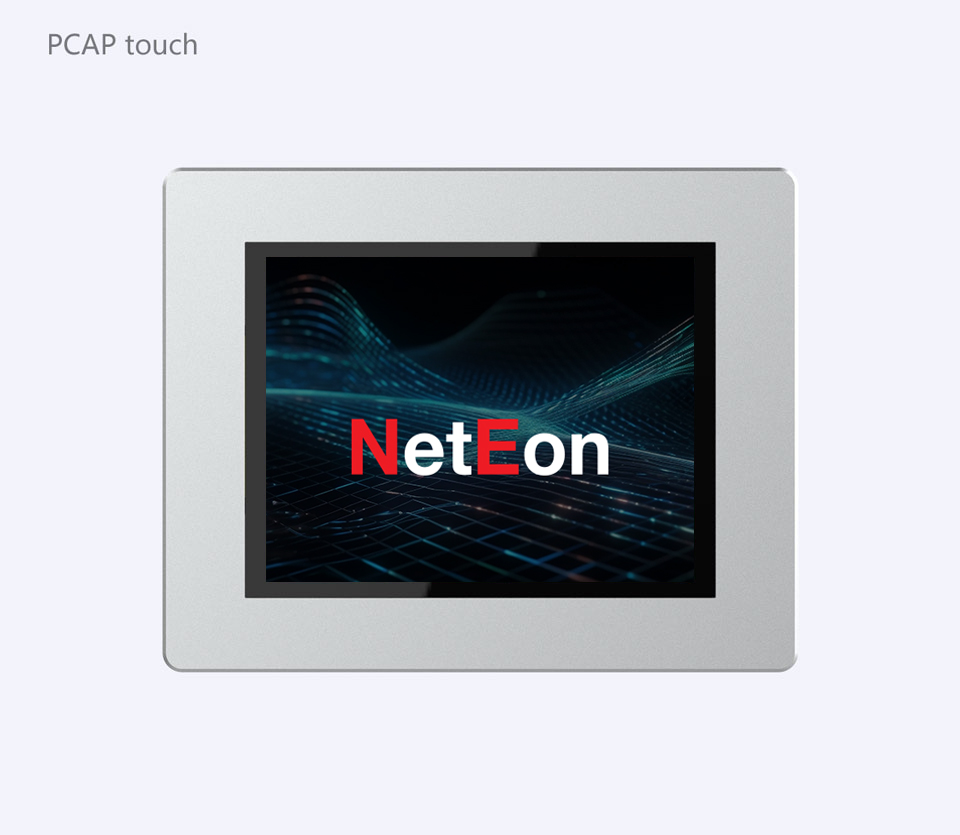

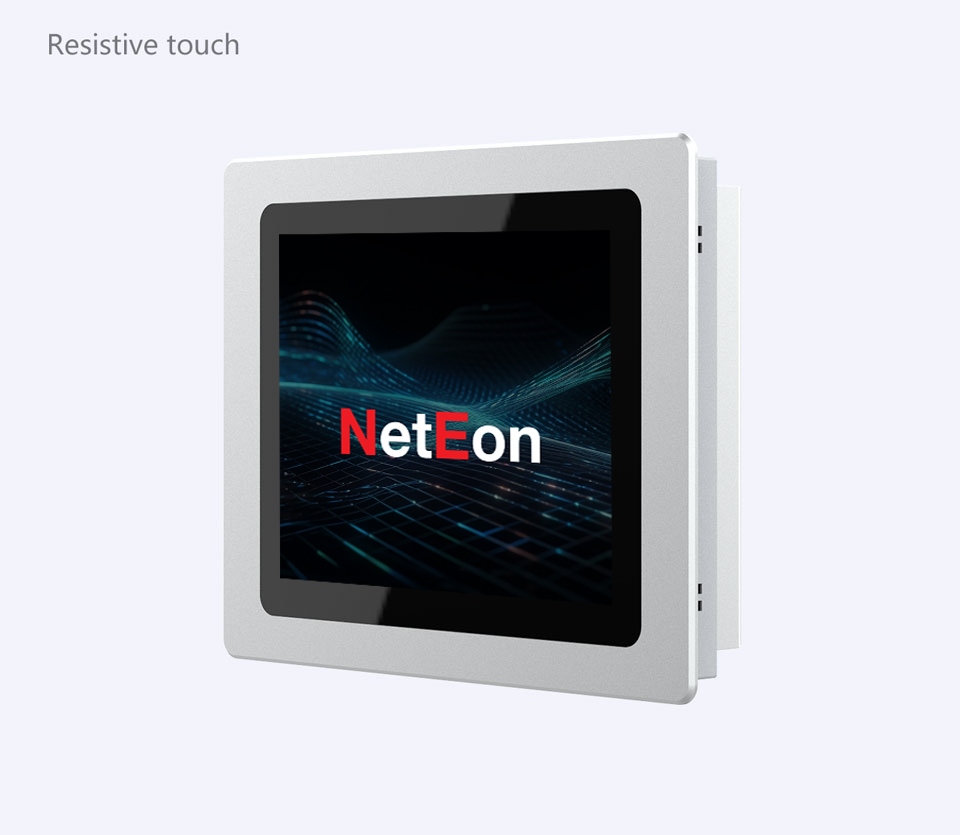

Touchscreen Touch Type 5-wire resistive touch Or Projected Capacitive
10-Point Multitouch
System CPU Options Intel® Celeron J1900

Intel Core Gen. 6th Option:
i3-6006U/6100U; i5-6200U; i7-6500U

Intel Core Gen. 7th Option:
i3-7020U/7100U; i5-7200U; i7-7500U

Intel Core Gen. 11th Option:
i3-1115G4; i5-1135G7/1145G7; i7-1165G7

Select Guide
RAM/Memory 4GB standard, 8GB/16GB/64GB
Storage 64GB SSD standard, 128GB,256GB,512GB SSD,1TB SSD
Ethernet/LAN 1x LAN or 2x LAN 1000Mbit RJ45 Ports
Operating System Ubuntu; Win7/8/10/11; Linux; 32Bit/64Bit

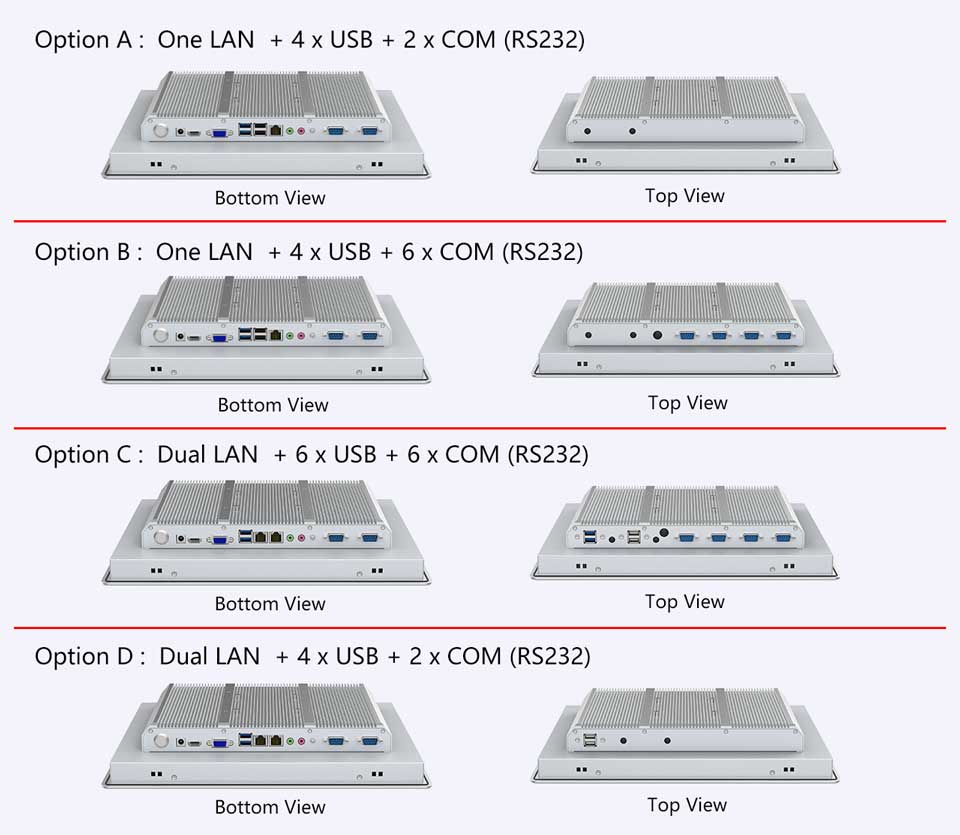

I/O Ports USB Ports 4x USB version or 6x USB version
Serial Ports 2x COM or 6x COM ports Full-PIN (RS232 default)
Optional COM 1X RS422 /1X RS485 COM
VGA 1x VGA Connector
HDMI 1x HDMI Connector
Audio MIC-In, EAR-Out
Power 100-240V ACDC active switching adaptor; 1x 12V DC-In
Optional Wi-Fi WIFI includes bluetooth (two-in-one)
Operating Temperature -10 ~ +60°C
Storage Temperature -20 ~ +70°C
Protect IP65/IP66 Front panel; Withstanding water, moisture,
dust and vibration
Construction Aluminum Front bezel + cooling cover + metal enclosure

Mounting Support:

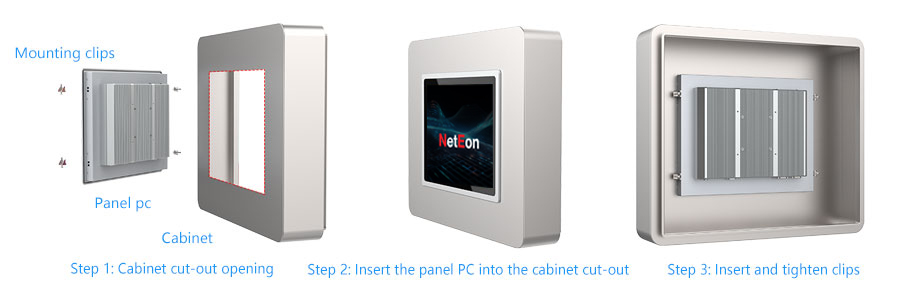

1. Panel Mount (Embedded Installation) – Standard come with embedded brackets.

Designed for seamless integration into control cabinets, kiosks, and machinery panels
Our standard Panel PCs come with embedded brackets (also known as mounting clips), allowing for easy and secure panel mount installation.

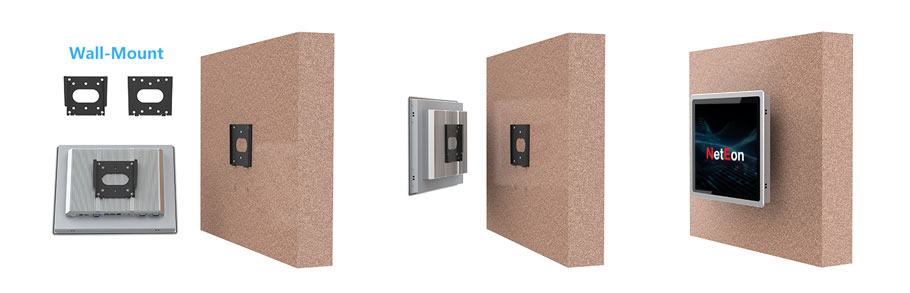

2. VESA Mount : 100×100mm/75x75mm (Wall Mount Installation) –Optional Accessory

Supports standard VESA mounting for easy attachment to walls, arms, or brackets — ideal for space-saving industrial environments.
The following is the wall mount installation method. Wall mount brackets are not included with the standard product package.
Customers may prepare their own or purchase them separately from Wisemaker.

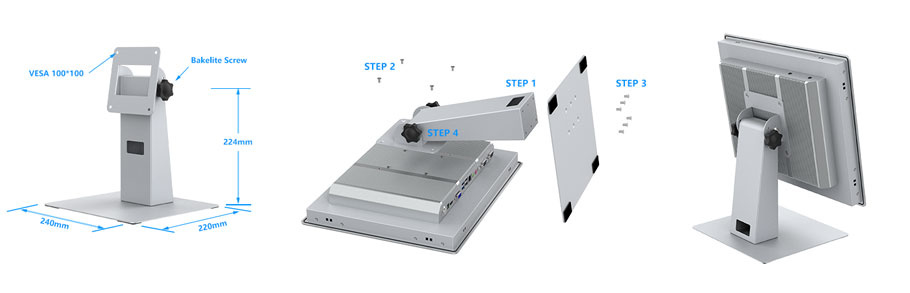

3. Desktop Stand Mount –Optional Accessory

Optional desktop stands provide a flexible solution for workstation use, testing stations, and control desks.
The following is the desktop installation method. A desktop stand is not included in the standard package and can be provided as an optional accessory upon request.

Standard Accessories:

  • Power Adapter x1
  • Mounting Brackets / Screws for panel mount

Optional Accessories:

  • Wall Mount Kit
  • Desktop Stand
  • External Fan Kit
  • Stylus Pen

Optional Functions:

  • TTL / GPIO / CAN Communication Support
  • Optional 4G LTE / 5G Connectivity
  • Wi-Fi / Bluetooth / RFID / NFC Modules
  • Barcode Scanner Integration (Optional)
  • High Brightness Outdoor Display
  • Special Touch Screen Options (Anti-UV/Anti-Glare / Anti-Fingerprint / AR)

Environmental Options:

  • Wide Temperature Range Support
  • Full IP65 / IP66 / IP69K Waterproof Solutions Available

Compliance & Certification:

  • CE, FCC, RoHS Certified
